Large areas of clear glass can look great in an office, shop or commercial building, but there’s one fairly obvious problem: sometimes they’re a little too clear.
If somebody doesn’t realise a glass door or partition is there, there’s a genuine risk of walking straight into it. Glass manifestation helps make glazing easier to see by adding visible markings, patterns, bands or graphics to the glass.
At FUZE Visual, we install manifestation for businesses that want to improve the safety and visibility of their glazing without compromising the overall look of their space.
But what do the glass manifestation regulations in the UK actually say, and does every glass door or partition need it?
What Is Glass Manifestation?
Glass manifestation is a visible design applied to transparent glazing to make the presence of the glass obvious.
You’ll probably have seen it without giving it much thought. Common examples include:

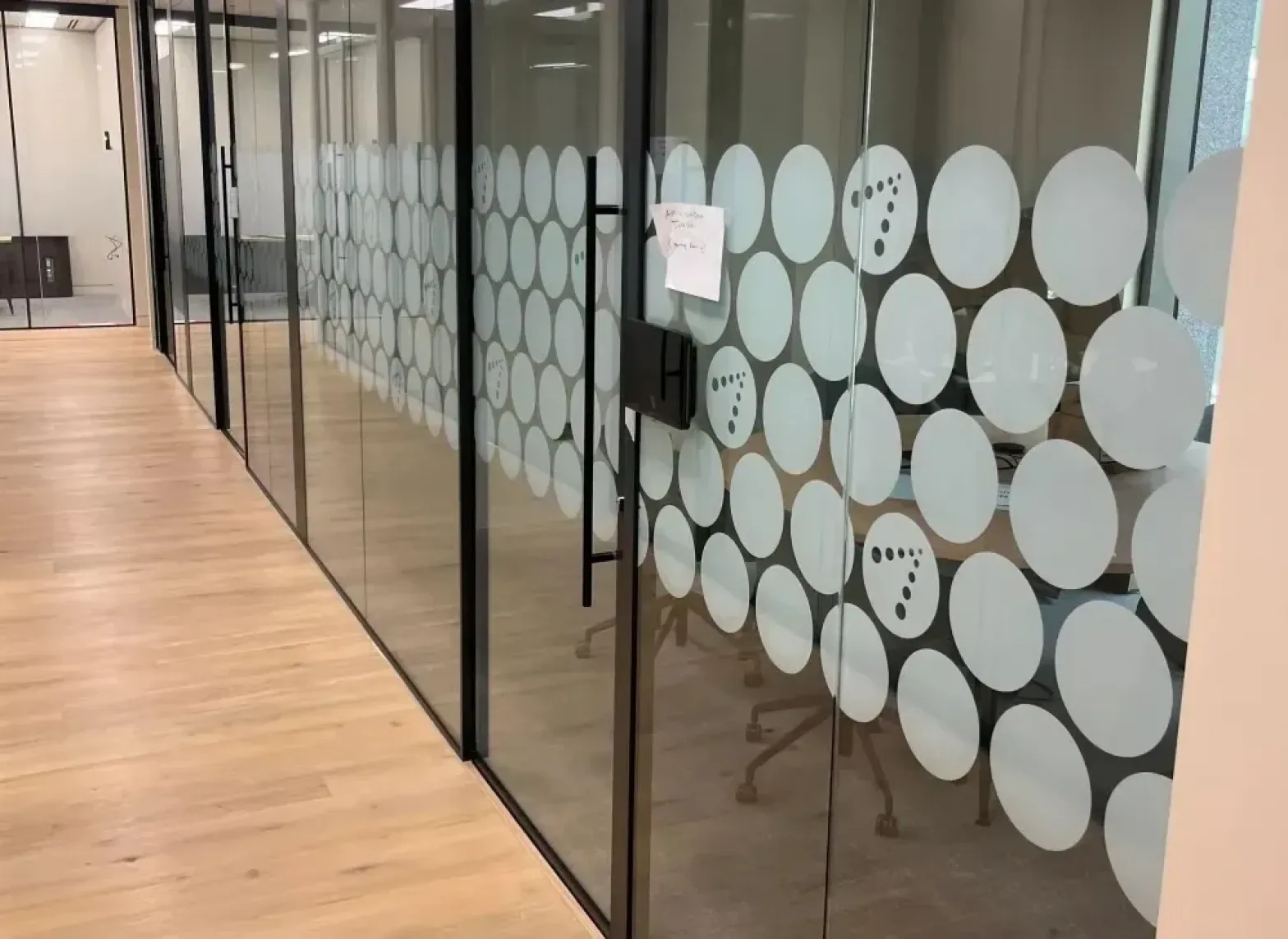

- Frosted dots or squares across office partitions
- Continuous or broken bands
- Decorative patterns
- Company logos
- Bespoke branded graphics
It has a practical safety purpose, but that doesn’t mean it has to look purely functional.
We can often incorporate branding or a bespoke design into the manifestation, helping businesses meet the practical requirements while making better use of their glass.
What Are the Glass Manifestation Regulations in the UK?
There are separate building regulations and standards across the different nations of the UK, so there isn’t one single set of rules covering every building everywhere.
For businesses in England, which includes the areas we primarily work across in Essex, Suffolk and London, the main guidance comes from Approved Document K of the Building Regulations.
Requirement K5.2 states that transparent glazing which people are likely to come into contact with while moving around a building should incorporate features that make its presence apparent. The guidance particularly identifies large uninterrupted areas of transparent glazing in places such as shops, offices, showrooms, factories and other non-domestic buildings.
Scotland, Wales and Northern Ireland have their own building standards and regulations, so the exact guidance for a property should always be checked according to its location. Scotland, for example, also recommends manifestation within two similar height ranges for glazing where there is a risk of accidental collision.
What Height Should Glass Manifestation Be?
This is probably the part of the regulations most businesses want to know.
Approved Document K recommends manifestation at two levels on relevant glass doors and glazed screens:
Lower level: between 850mm and 1000mm above floor level
Upper level: between 1400mm and 1600mm above floor level
Having markings at two different heights helps make the glazing visible to a wider range of people approaching the glass.
It’s why you’ll often see two horizontal rows of dots, bands or graphics running across commercial glass rather than one strip positioned at eye level.
How Big Does Glass Manifestation Need to Be?
The guidance doesn't simply say that something needs to be stuck to the glass. The manifestation needs to be sufficiently visible.
Approved Document K advises that manifestation should contrast visually against the background seen through the glazing from both sides and in different lighting conditions.
It can take the form of:
- A logo or sign at least 150mm high, repeated where appropriate across a glazed screen
- Decorative features, broken lines or continuous bands at least 50mm high
The important point is visibility. A very subtle clear or lightly coloured graphic may look attractive close up but could fail to make the glass obvious when someone is approaching it.
Can You Use Your Company Logo as Glass Manifestation?
Yes, and this is where manifestation can become much more interesting.
Approved Document K specifically allows company logos to form part of a manifestation design, provided the design meets the necessary visibility and sizing requirements.
Rather than installing generic rows of circles across an office, we can use repeating logos, shapes from your brand identity or a completely bespoke pattern.
For businesses with large meeting rooms, entrance doors or glass partitions, this gives you another opportunity to bring your branding into the space while still performing the practical job manifestation is there to do.
Does Every Glass Door and Window Need Manifestation?
No.
The regulations are concerned with glazing where there is a realistic risk that somebody might not see it and could collide with it.
Large, uninterrupted areas of clear glass are the obvious example.
There may already be features that make the glazing clearly visible, such as substantial frames, rails, mullions, transoms or large door handles. Approved Document K includes examples where these features can provide sufficient indication that glazing is present without separate manifestation being required.
That’s why it’s better to assess the actual glazing rather than assume every pane in a commercial property needs two strips of vinyl running across it.
What About Glass Doors Within Glazed Walls?
These need a little extra thought.
Where a glazed door sits alongside or forms part of a larger glazed screen, it can be difficult to distinguish where the door starts and the fixed glazing ends.
Approved Document K advises that these doors should be clearly differentiated using a high-contrast strip across the top and both sides.
Again, the objective is straightforward: somebody approaching the glazing should be able to understand what they’re looking at and identify the route through it.
Is Glass Manifestation Just About Compliance?
Not at all.
We regularly use glass manifestation as both a safety feature and a design feature.
A straightforward frosted band may be perfect for one office, while another business might want:
- Branded logo manifestation
- Bespoke patterns
- Decorative frosting
- Increased privacy around meeting rooms
- Different designs for separate areas of an office
- Graphics that tie into the wider interior branding
Manifestation can even be combined with privacy film where businesses want to obscure part of a glazed meeting room while retaining a lighter, more open feel above it.
That means the end result can feel intentionally designed rather than something that has simply been added because it was required.
Do You Need Glass Manifestation for Your Business?
If you have large glass doors, entrance glazing, office partitions or other uninterrupted areas of transparent glass, it’s worth checking whether the glazing is sufficiently visible.
At FUZE Visual, we can look at your existing glass and create a manifestation design that balances visibility, safety and branding.
We supply and install professional window manifestation for businesses across Essex, Suffolk and London, from simple frosted designs through to fully bespoke branded graphics.
If you’re unsure what your glazing needs, get in touch with our team. We can talk through the space, the type of glass you have and the finish you want to achieve before recommending the right solution.
